The SKYLUX Shadow less lamps
NEX-i ("nex-eye") A ceiling surgical lamp of a design that blends in well with its surroundings, instantly and easily controlled with an infra-red beam signal emitted from its hand-held EC remote control.
NEX-i Available as a single lamp unit or as a combination of several lamps, makes this surgical lamp ideal lighting system for ICU, LDR, birthing rooms in human or veterinary hospitals and clinics.
NEX-i Special Features...
Several surgical lamps in the same room can be synchronized and focused on one light field at the surgical or examinationsite and easily operated with the same Emit Conductor (Auto Wand Remote), independently or together.
Emit Conductor (Auto Wand Remote)
The operation panel of EC remote control provides three buttons (A, S, B) for three operation modes controlled by an infra-red beam emitted from EC remote and aimed at the FEA sensor positioned next to the surgical lamp in the ceiling to adjust the surgical lamp accurately to the desired position.with a single lamp installation, press A button and move the remote to adjust the position of the lamp. With two or more lamps, press the S (Synchro) button to enter the synchro mode and then adjust the position of the lamps together, or press the A or B button to adjust the A or B lamp, or the A or B group if paired lamps are used. The power button and intensity button are used to operate all the surgical lamps together.
NEX-i Available as a single lamp unit or as a combination of several lamps, makes this surgical lamp ideal lighting system for ICU, LDR, birthing rooms in human or veterinary hospitals and clinics.
NEX-i Special Features...
Several surgical lamps in the same room can be synchronized and focused on one light field at the surgical or examinationsite and easily operated with the same Emit Conductor (Auto Wand Remote), independently or together.
Emit Conductor (Auto Wand Remote)
The operation panel of EC remote control provides three buttons (A, S, B) for three operation modes controlled by an infra-red beam emitted from EC remote and aimed at the FEA sensor positioned next to the surgical lamp in the ceiling to adjust the surgical lamp accurately to the desired position.with a single lamp installation, press A button and move the remote to adjust the position of the lamp. With two or more lamps, press the S (Synchro) button to enter the synchro mode and then adjust the position of the lamps together, or press the A or B button to adjust the A or B lamp, or the A or B group if paired lamps are used. The power button and intensity button are used to operate all the surgical lamps together.
FEA Sensor

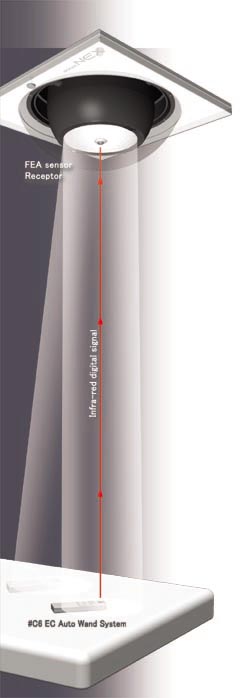

The FEA, "Fish Eye Alley", sensor is embedded in the center of the surgical lamp, receives the digital infra-red beam emitted from the EC remote control, peocesses it instantly, and then uses this data to drive the gyro mechanism that adjusts the position of the light.
Range and High Luminescence

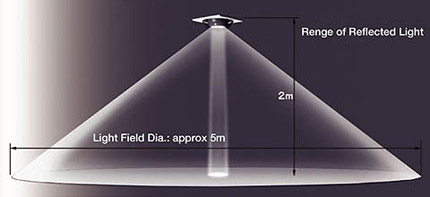

A large cold mirror reflector (Φ205 mm) and Super Halogen 24V-100W bulb are used together to provide a quality shadowless, cool beam of light approximately 20 cm in diameter of approximately 30,000 lux up to 1.7 meters away from the lamp head.The gyro mechnism responds to control within 2 m directly below and within a phenomenal lateral radius of up to 5 m below the lamp head. (Refer to the illustration below.)
The FEA, "Fish Eye Alley", sensor is embedded in the center of the surgical lamp, receives the digital infra-red beam emitted from the EC remote control, peocesses it instantly, and then uses this data to drive the gyro mechanism that adjusts the position of the light.
Range and High Luminescence
A large cold mirror reflector (Φ205 mm) and Super Halogen 24V-100W bulb are used together to provide a quality shadowless, cool beam of light approximately 20 cm in diameter of approximately 30,000 lux up to 1.7 meters away from the lamp head.The gyro mechnism responds to control within 2 m directly below and within a phenomenal lateral radius of up to 5 m below the lamp head. (Refer to the illustration below.)
Emit Conductor (Auto Wand Remote) |
||
 |
Light field Movement With a single unit,press the A button and then move the Emit Conductor (Aout Wand Remote) to change the position of the lamp head.For a multiple lamp independently, or press the S button to adjust the positions of both lamps at the same time. Light Adjustment Adjust the intensity of light 50% to 100% in 8 steps. The light intensity can be adjusted independently ehile pressing the A or B button. |
|
Power ON/OFF This is the NEX-i power switch that switches all the lamps on/off at same time. By pushing the A or B button, each lamp can be switched on/off independently. * When using the EC remote control as a wand to position the lamp heads, always aim the remote control at the FEA sensors embedded in the lamp heads. |
||
Ideas |
|
ICU, CCU, Out patient Clinic, polygraphy, Endoscopy |
|
 |
|
ICU, CCU, Emergency Room, Veterinary Clinics |
LDR, birthing Room |
 |
 |
This is a vriation of Idea 2 abobe. |
|
Operating Theatre, Emergency Room Surgery, Autopsy, Veterinary Surgical Clinic,
|
|
 |
|
Lamp head Specifications |
||
Name |
NEX-i |
|
Power source |
AC110V-240V 50/60Hz 120VA |
|
Reflector |
Φ205mm Large Cold Mirror Reflector |
|
Lightsource |
Super Halogen Bulb（#SH-100 24V-100W） |
|
Demensions |
490×490×355mm (w x h x d) |
|
Weight |
15kg |
|
Emit conductor (auto wand Remote) Specifications |
||
Name |
#C6 |
|
Power source |
AA batteries (x2) |
|
Demensions |
50 x 160 x 18mm (w x h x d) |
|
Weight |
120g |
|
Capacity |
||
Light Range |
Apporox. 5m lateral, 2m vertical from lamp head |
|
Light Focus |
Apporox. 30,000lux (1.7m from lamp head) |
|
Light Field Diameter |
Apporox. 200mm (2m from lamp head) |
|
Color Temprature |
3600K±250K |
|
Light Intensity Adjustment |
50～100% through 8 steps |
|
Light position Adjustment |
Auto Wand Remote: A , B independent/Synchro mode |
|
