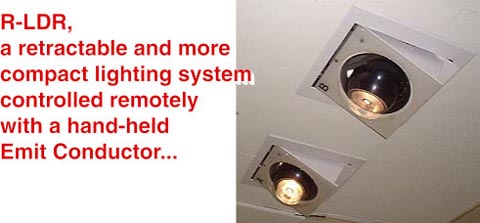

The SKYLUX R-LDR Lighting System
Special Features |
1. The R-LDRs are retractable so when a delivery room is not in use, it can be used as a general patientÕs room with the lamps retracted. 2. Pressing the Open button on the wall control panel automatically projects the lamps, switches them on, and moves them to the prescribed position. 3. Operation of the lampsŃpositioning, light intensity adjustment, switching between Synchro and Individual modeŃis controlled remotely with the Emit Conductor (Auto Remote Wand). 4. Super Halogen 24V 100W bulbs and a large cold mirror reflector (f205) are combined to produce a light field approximately 20 cm in diameter of up to 30,000 lux intensity that projects up to 1.7 meters away from the lamphead. 5. The gyro mechanism responds to control up to 2 meters directly below the lamps and within a lateral radius of up to 5 meters. |
Light Field Movement
Press the A or B button and then move the@Emit Conductor (Auto Wand Remote) to change the position of the lamp head independently, or press the S button to adjust the positions of both lamps at the same time. (A and B stickers are put on each lamp head)
Light Adjustment
Adjust the intensity of light 50% to 100% in 8 steps. The light intensity can be adjusted independently while pressing the A or B button.

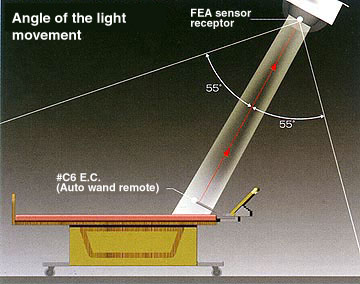

When using the EC remote control, always aim the remote control at the FEA sensors embedded in the lamp heads.

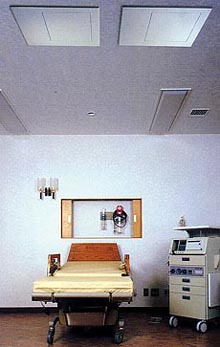

| It can be used as a general patient's room with the lamps retracted. |
Lamp head Specifications |
||
Name |
R-LDR (2 Units / set) |
|
Power source |
AC110V-240V 50/60Hz 120VA |
|
Reflector |
³205mm Large Cold Mirror Reflector |
|
Lightsource |
Super Halogen Bulbi#SH-100 24V-100Wj |
|
Demensions |
700~710~415mm (w x h x d) |
|
Weight |
Approx. 40kgs. / unit |
|
Emit conductor (auto wand Remote) Specifications |
||
Name |
#C6 |
|
Input |
AA batteries (x2) |
|
Demensions |
50 x 160 x 18mm (w x h x d) |
|
Weight |
120g |
|
Capacity |
||
Light Range |
Apporox. 5m lateral, 2m vertical from lamp head |
|
Light Intensity Adjustment |
50`100% through 8 steps |
|
Light Position Adjustment |
Auto Wand Remote: A , B independent / Synchro mode |
|
*For a single unit |
||
Light Intensity |
Apporox. 30,000lux (1.7m from lamp head) |
|
Light Field Diameter |
Apporox. 200mm (2m from lamp head) |
|
Color Temprature |
3600K}250K | |
